COMP4021 Lab 1 Hammer Game

Overview

In this lab, you need to create a simple "hammer" game by writing your own JavaScript code

The game runs as follows:
1. When the game is loaded, a clock counts down from 10 seconds to zero
2. A monster appears randomly
3. It moves to a new position after a certain period of time
4. Players have to press the corresponding key to hit the monster before it moves
5. If the player hits the monster, the score increases and the monster moves immediately
6. When time is up, the game is over and everything freezes

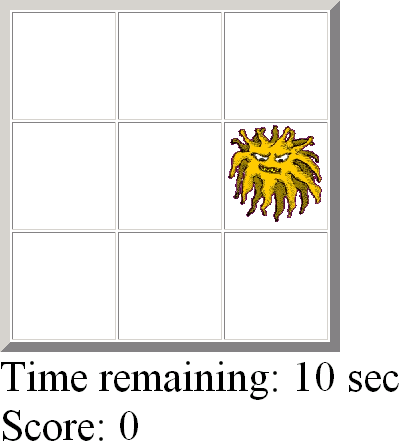

When playing the game, the corresponding keys for the nine boxes are shown below:

Q W E

A S D

Z X C
We will demonstrate the game during the lab session

Getting Started

An HTML file hammer.html is given to you as the starting code of the program here
(right click on the link, select 'Save Target As', and save it to your computer)
Two sample pictures are given to you here: the empty background, empty.png, and monster, monster.png
You can use any text editor such as Notepad to build your program
- Alternatively you can use TextPad, which is available in the CS labs, to edit your program

Programming Overview

Complete five predefined JavaScript functions

game_start()
- This is called by the onload attribute in the <body> tag
- It starts the game by calling the count down function and monster relocating function
count_down()
- If the time limit of the game is 10 seconds, then this function will be called 10 times to update the clock
- When the count down is finished, it calls the game over function
relocate()
- This moves the monster to a new position. Do it again after a certain period of time
keyboard_event()
- Collect player input
- If the player hits the monster, update his/her score and relocate the monster
game_over()
- Stop everything and show a message

Create two JavaScript timers

count_down_timer
- Count down from 10 to 0 in the game
moving_timer
- Handle the monster relocation after a certain period of time

Create four variables at the beginning

var score = 0;
- The score of the player
var time_remaining = 10;
- Store the time remaining
var monster_position = 0;
- Store the current position of the monster (a number from 0 to 8)
var finished = false;
- Indicate whether the game is finished or not

Example JavaScript programs

Count down - it shows a timer counting down from 10 sec to 0 sec
Key press - it asks you to press a key, and then it shows what key you have pressed
Image index - it shows a monster appearing in a specific position when you press a number from 0 to 8
Remember you can always look at the source code by selecting View Source (Internet Explorer) or Ctrl-U (Firefox)

Programming Procedure

1. Start the game

In the starting code, we have set game_start() to be the first function to run when the page is loaded
```
<body onload="game_start()">
```
game_start() should call count_down() after 1 second
Also, it will call relocate() without delay, so that the monster starts to move immediately

2. Create a 10 seconds count down timer

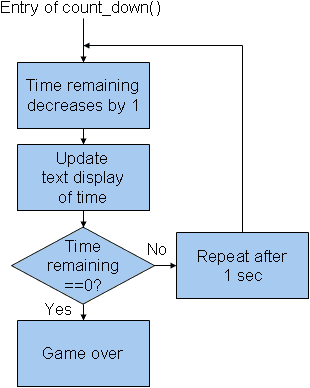

count_down() works as follows:

In count_down(), we need to do three things:

Decrease the time remaining by 1
```
time_remaining = time_remaining - 1;
```

Update the timer display

var timer_element = document.getElementById("timer_text");
timer_element.innerHTML = "Time remaining: " + time_remaining + " sec";

If time_remaining equals 0, the game is over; otherwise, call this function again after a second

if (time_remaining == 0)
    game_over();
else
    count_down_timer = setTimeout("count_down()", 1000);

3. Finish the game

In game_over(), we need to stop the timer and print an appropriate message
```
clearTimeout(moving_timer);
alert("Times up!!!");
```
Also, set the finished variable to true

4. Move the monster to a new position

relocate() will be called in these situations
1. When the game just begins, it is called by game_start()
2. After the monster has appeared in one location for a certain period of time, it relocates
3. After the player hits the monster, the monster relocates

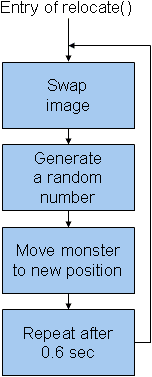

relocate() works as follows:
Before the monster moves to a new location, we have to clear the image first
We do this using a trick, we change the image by changing the .src value
You have already learnt how to generate a random number
Using the same technique we generate a random from 0 to 8 and store the new position in the variable monster_position

For the name of each box, you can refer to the table below:

document.images[0]	document.images[1]	document.images[2]
document.images[3]	document.images[4]	document.images[5]
document.images[6]	document.images[7]	document.images[8]

Then at the new position we set the picture to "monster.png"
```
document.images[monster_position].src = 'monster.png';
```

So now the monster has moved
However, in order to make the game more interesting, the monster should automatically jump to another location after a certain period of time, say, 0.6 sec
So, at the end of the function, we use setTimeout to call relocate() again after a delay
```
moving_timer = setTimeout("relocate()", 600);
```

5. Hit the monster box

We have to work on keyboard_event() so that the game responds to the player

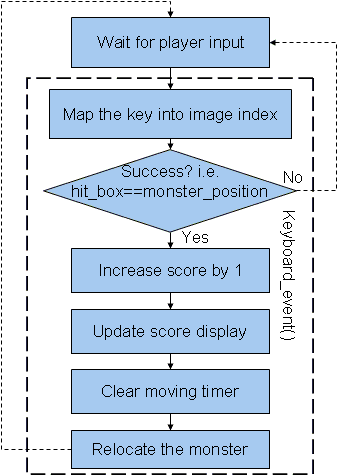

It works as follows:
The body should respond to the keyboard event only when the game is not finished
```
<body onKeyDown="if (!finished) keyboard_event(event)">
```
keyboard_event() should carry out two major tasks:
1. Transform the player's input into the corresponding image index
  - Extract the pressed key from event.keyCode
```
var pressed_key = String.fromCharCode(event.keyCode);
```
  - Transform the pressed key into image index and then store the result in a new variable hit_box
```
var hit_box;
switch(pressed_key)
{
    case 'Q': hit_box=0; break;
    case 'W': hit_box=1; break;
    . . . // And so on
}
```
2. If the player presses the correct key, update the score and move the monster to a new position
```
if (monster_position == hit_box) {
    // Update score and relocate monster
    . . .
}
```
  - Increase the value of the variable score by 1
  - Update the score display, we can use .innerHTML to do this
  - Move the monster immediately by calling relocate(); but, before doing this, we have to clear the moving_timer first so there is no confusion
```
clearTimeout(moving_timer);
```

6. Add sound

To make the game funnier, we can add a sound when we hit the monster using the <audio> tag
You can get sample sound files ouch.mp3 for hit and boo.mp3 for miss
Mostly we will use wav file, here mp3 file is for IE browser. Chrome and Firefox can support both files.

To achieve that, we have to add the following syntax inside the <body>...</body> area of the HTML:

        <audio src="./hammer_files/boo.mp3" type="audio/mpeg" width="0" height="0" id="boo" > </audio>
	<audio src="./hammer_files/ouch.mp3" type="audio/mpeg" width="0" height="0" id="ouch"> </audio>

Remember to add the JavaScript code pause() and play() at the right place
So when the monster is hit, the sound will be played immediately
If the monster is hit again, the playing sound will be stopped and played again

Submission

You do not need to submit the lab work
